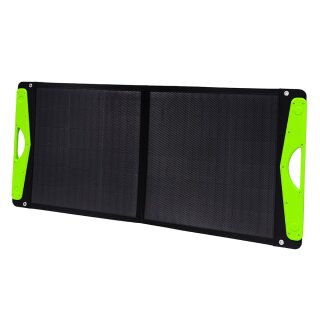

The 100w solar bag from Offgridtec (mpn 012715) is a portable solar module and suitable for those who value flexibility. The module is foldable, lightweight and space-saving, making it suitable for many applications. It can be placed horizontally or at a 45° angle using the integrated supports to ensure the best possible solar yield. In good weather, the module can generate approximately 500-550Wh of energy per day. Due to the integrated usb-connectors in the handle, you can also charge small consumers without charge controller and battery. The Offgridtec solar bag is therefore the ideal companion for the spontaneous camping trip and the perfect addition to your outdoor equipment.
Features
- Rated power: 100w
- High efficiency of 22.3%
- 2x usb 5v 2a connectors for direct charging
- Robust and water repellent fabric
- 5 meter connection cable with Anderson Powerpole connector
- 1.5 meter battery connection cable with 10a fuse
- Stand feet with ring eyelets
Always ready for use
You will achieve the greatest benefit with the solar bag in combination with a charge controller and a battery to store the generated energy. But also solo the foldable module is always ready for use. Through the two usb 5v connections you can charge your cell phone or other small consumers via usb directly at the module. The connections are located directly in the handle of the module, so it is ideal for the spontaneous camping trip.
High quality workmanship
The 100w solar bag from Offgridtec is both robust and space-saving, giving you a high degree of flexibility. The durable and water-resistant polyamide fabric makes the solar bag the ideal companion for camping trips. As with all Offgridtec solar modules, the solar bag is designed with high quality and durability in mind. We produce our solar modules according to current norms and standards which, together with the high-quality materials, makes our modules high-end products that deliver top technical performance even under the most adverse conditions.
Flexible alignability
The Offgridtec solar pocket can be aligned to match the position of the sun at any time to generate optimal yields throughout the day. Thanks to the integrated supports, the module is positioned at a 45° angle and can thus capture the last rays of the sun even in spring and autumn, when conventional solar panels produce only low currents due to flat sun angles. Its light weight and integrated handles make it easy to transport and ready for use at any time.
Technical data:
- Rated power: 100w
- Module voltage (Vmp): 20V
- Max. Charge current (Imp): 5.06A
- Open circuit voltage (Voc): 23.3V
- Short circuit current (Isc): 5.45A
- Cell efficiency: 22.3%
- Max. System voltage: 200 VDC
- Tolerance: ±3%
- Temperature coefficient: -0.38%/°C
- Dimensions closed: 605 x 535 x 45 mm
- Dimensions opened: 1200 x 535 x 22.5 mm
- Weight: 4.85 kg incl. carrying bag
- Connection Kit included
Scope of delivery:
1x Offgridtec solar bag 100w
1x 5 meter connection cable with Anderson Powerpole plug
1x 1,5 meter battery connection cable with 10a fuse
| Item weight: | 6,80 kg |
| Dimensions ( Length × Width × Height ): | 120,00 × 53,50 × 2,30 cm |
