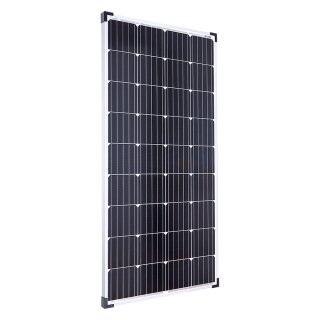

The solar module 130w mono from Offgridtec (mpn 3-01-001250) works with monocrystalline solar cells with a high efficiency of >18,5% and is ideal for 12v systems thanks to its 20v operating voltage.
In Offgridtec mono solar modules only cells of the highest quality grade are installed and guarantee a constant high quality and performance with maximum service life thanks to state-of-the-art manufacturing.
Features of Offgridtec 130w 12v mono solar panel
- proven quality directly from Offgridtec
- high operating voltage of 20v, perfect for 12v systems
- manufactured according to the latest standards
- monocrystalline solar cells
- extremely resistant ESG glass makes the module usable even in the most adverse environmental conditions
- ideal for 12v systems on land or in mobile solar systems
- 2 bypass diodes - minimized power loss in shaded conditions
- 3 busbars
The mono 130w 12v is one of over 40 proven solar panels from the Offgridtec portfolio and participates in Offgridtecs experience in manufacturing high quality 12v and 24v solar cells. The module can be used in very adverse operating conditions thanks to the extremely resistant solar glass. It can withstand heavy hail and storms or extreme cold and heat without any problems and thanks to the integrated bypass diodes, the module can continue to produce power even in shaded or low light conditions.
The most important technical data at a glance
- Power (Pmax): 130w
- Working voltage (Vmp): 20 V
- Open circuit voltage (Voc): 24 V
- max. current (Imp): 6.5 A
- Short circuit current (Isc): 7.02 A
- max. system voltage: 1000 V
- permissible ambient temperature: -40°C - +85°C
- Dimensions: 1020 x 680 x 35 mm
- Weight: 10 kg
Universally applicable
Offgridtecs 130w 12v Mono is universally applicable for example in 12 volt Solaranlagen on garden houses, allotments or for the power supply of lighting applications, self-sufficient systems of signal and surveillance technology and many more. But also in mobile systems such as in mobile home solar systems this panel makes a good figure.
The connection cables are 80 cm long and equipped with MC4 connectors.
Scope of delivery:
Offgridtec 3-01-001250 130w mono 12v solar panel
| Item weight: | 10,00 kg |
| Dimensions ( Length × Width × Height ): | 102,00 × 68,00 × 3,50 cm |
