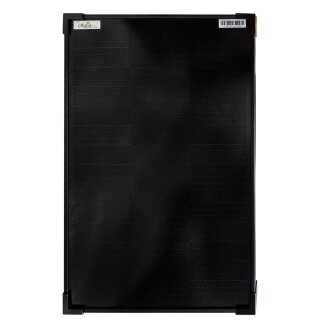

The Offgridtec olp 30w (mpn 3-01-012505) is a powerful 12v solar module with innovative overlapping design wafer assembly and features dimensions that almost reach the range of high power solar modules. The shingle arrangement of the wafers ensures optimal current flow due to minimized power losses and significantly higher module efficiency due to better space utilization. The perc technology used improves light absorption and increases the power yield.
Technical features of the olp 30w
- Power (Pmax): 30wp
- Voltage (Vmp): 17.6V
- max. current (Imp): 1.7A
- Open circuit voltage (Voc): 20.7V
- Short circuit current (Isc): 1.84
- max. system voltage: 1000V
- Ambient temperature: -40°C - +85°C
- Dimensions: 525 x 348 x 25 mm
- Weight: 2,05KG
Note: No connection cables included
Unique selling points of the olp series of Offgridtec
- Unique module design with overlapping wafer arrangement (overlapping design) ensures very high module efficiency through better area utilization and reduced power losses due to line resistances.
- Modern, homogeneous appearance without visible conductor tracks.
- Innovative perc technology ensures improved absorption at longer wavelengths, e.g. at flat irradiation angles (early morning and evening) or in cloudy conditions
- No hotspot hazard
- Less loss in case of partial shading
- Thanks to finishing according to overlapping design, the module has a footprint of just 525 x 348 x 25 mm at a rated power of 30w. The cell efficiency is over 23%.
Innovative perc technology
The perc technology (Passivated Emitter Rear Cell or rear side passivation) in the Offgridtec olp solar modules ensures higher solar cell efficiency with its key technology. A dielectric layer is created on the back of the cell between the conventional aluminum metallization and the silicon wafer layer, which is provided with tiny holes by a laser. This dielectric layer reflects light, which penetrates to the back side without generating charge carriers, into the solar cell. The reflection gives the photons a "second chance" to generate electricity. In addition to higher efficiency at different wavelengths and the increased likelihood that electrons will contribute to power, perc technology contributes to lower system costs and an increase in area energy yield.
Scope of delivery:
3-01-012505 Offgridtec® olp 30w 12v perc overlapping solar panel shingle technology
| Item weight: | 1,96 kg |
| Dimensions ( Length × Width × Height ): | 51,50 × 35,00 × 2,50 cm |
