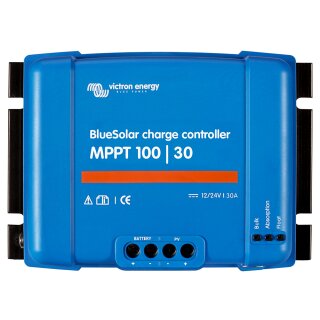

The Victron MPPT 100/30 (MPN SCC020030200) is part of the BlueSolar MPPT charge controller familiy and provides ultra-fast powertracking which extends your solar system's output. Compared to the 75/15 this controller processes a higher PV-Voltage and therefore handles a 100V DC safely.
Next generation MPP-tracker
Especially on clouded days with changing light intensity a MPPT controler increases your system output by up to 30% compared to PWM charge controllers. Besides a higher charging and PV-capacity this Blue varys from the lower models. The 100/30 allows the programming and saving of different charging algorithms. Those can be adjusted simply via a switch-wheel on the device. This is the first model without a consumer output.
Programming, real-time data and logging
Latest Apple and Android devices (smartphones, tablets,...) can be connected via VE.Direct over Bluetooth Smart Dongles and the MPPT App or via the GX Color control.
Please note that the Bluetooth Smart dongle and the GX Color Control are not included in the delivery scope but available separately.
Important features:
- Ultra-fast MPP-tracker ensures highest possible outcome even when it is cloudy
- Integrated VE.Direct data port for connecting devices like the Bluetooth Smart Dongle or the GX Color Control panel
- Suitable for 12V and 24V systems
- Rated charging amperage: 30A
- 440W max. PV-performance at 12V and 880W at 24V
- 30A consumer output with auto-shutdown at imminent battery undervoltage (deep discharge protection)
- Reverse polarity protection
- Multistep adaptive charging algorithm
- Battery charging algorithm programmable
- Integrated battery life algorithm extends battery life when activated and all consumers are connected to the consumer output
- Day/night-time control and dimming options
VE.Direct data port integrated
VE.Direct transfers important parameters to all devices connected to the charge controller and allows communication to equipment such as the Bluetooth Smart Dongle or the GX Color Control. The VE.Direct data port is meant for products where a full canbus integration would produce extreme costs. Please check our Victron brand section for more information about VE.Direct.
Integrated battery life algorithm extends battery life
If the charge controller can't manage to fully charge the battery within a day the battery status switches constantly between "partly charged" and "end of discharge". This operation mode (no regular charging) is ideal for small lead batteries, for lead-acid batteries otherwise irregular charging and discharging can cause severe damage already after several months.
The battery life algorithm checks the battery's charging level and heightens the switch-off threshold from day to day. That means that connected consumers are switched off earlier until the produced energy is sufficient for a full battery charge of 100%. From this point on the threshold is modulated in a way that a full charge can be reached once a week.
Delivery Scope:
1x Victron SCC020030200 BlueSolar MPPT 100/30 12V 24V 30A charge controller
1x Manual
| Item weight: | 1,30 kg |
| Dimensions ( Length × Width × Height ): | 18,60 × 13,10 × 7,10 cm |
