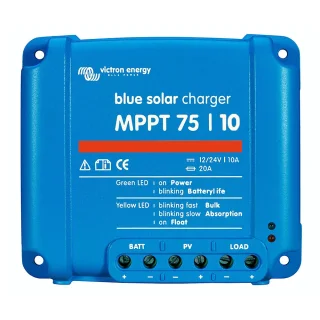

The Victron MPPT 75/10 (MPN SCC010010050R) is part of the BlueSolar MPPT charge controller familiy and provides ultra-fast powertracking which extends your solar system's output.
Next generation MPP-tracker
Especially on clouded days with changing light intensity a MPPT controler increases your system output by up to 30% compared to PWM charge controllers. Moreover the 75/10 comes with further innovative technologies.
Programming, real-time data and logging
Latest Apple and Android devices (smartphones, tablets,...) can be connected via VE.Direct over Bluetooth Smart Dongles and the MPPT App or via the GX Color control.
Please note that the Bluetooth Smart dongle and the GX Color Control are not included in the delivery scope but available separately.
Important features:
- Ultra-fast MPP-tracker ensures highest possible outcome even when it is cloudy
- Integrated VE.Direct data port for connecting devices like the Bluetooth Smart Dongle or the GX Color Control panel
- Suitable for 12V and 24V systems
- Rated charging amperage: 10A
- 134W max. PV-performance at 12V and 270W at 24V
- 15A consumer output with auto-shutdown at imminent battery undervoltage (deep discharge protection)
- Reverse polarity protection
- Multistep adaptive charging algorithm
- Battery charging algorithm programmable
- Integrated battery life algorithm extends battery life when activated and all consumers are connected to the consumer output
- Day/night-time control and dimming options
VE.Direct data port integrated
VE.Direct transfers important parameters to all devices connected to the charge controller and allows communication to equipment such as the Bluetooth Smart Dongle or the GX Color Control. The VE.Direct data port is meant for products where a full canbus integration would produce extreme costs. Please check our Victron brand section for more information about VE.Direct.
Integrated battery life algorithm extends battery life
If the charge controller can't manage to fully charge the battery within a day the battery status switches constantly between "partly charged" and "end of discharge". This operation mode (no regular charging) is ideal for small lead batteries, for lead-acid batteries otherwise irregular charging and discharging can cause severe damage already after several months.The battery life algorithm checks the battery's charging level and heightens the switch-off threshold from day to day. That means that connected consumers are switched off earlier until the produced energy is sufficient for a full battery charge of 100%. From this point on the threshold is modulated in a way that a full charge can be reached once a week.
- Delivery Scope:
1x Victron SCC010010050R BlueSolar MPPT 75/10 12V 24V 10A charge controller
| Item weight: | 0,47 kg |
| Dimensions ( Length × Width × Height ): | 11,30 × 10,00 × 3,80 cm |
